10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light

Product Categories
Shenzhen Keysun Technology Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light

Place of Origin : Guangdong, China

Brand Name : KSPOWER

Packaging Details : Yellow Box + Carton

Supply Ability : 800000 Piece/Pieces per Month

MOQ : 2 pieces

Price : $23.40/pieces 2-499 pieces

Warranty(Year) : 3-Year

Lighting solutions service : Lighting and circuitry design

Type : MANUAL SWITCH

product name : 12v 50w 24v ETL led driver

mode : PWM output

Dimming mode : Triac/Phase -cut

Feature : Flicker-free

certification : ETL CETL Class2 CE Cert

material : iron case

PF value : >0.95

efficiency : >88%

warranty : 3 years

dimension : 200*85*37mm (L*W*H)

Contact Now

10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
Products Description
junction box led flood light transformer 40 watt dimming led driver 10w Class2 led power supply led ul driver 12v 50w 24v dimmer

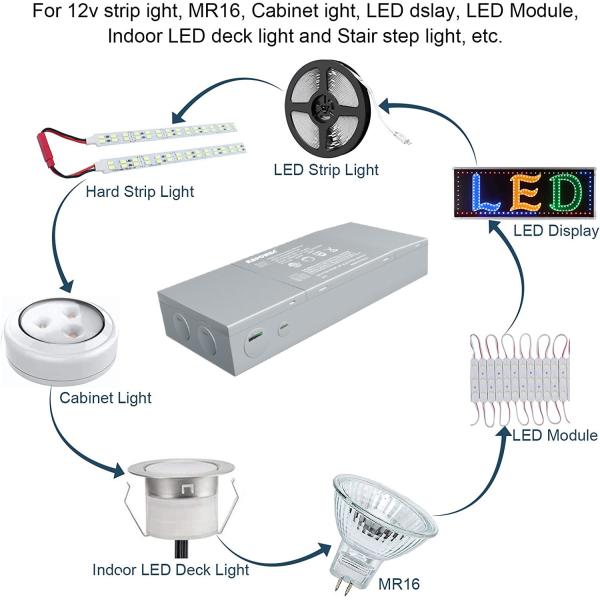

The KSPOWER - ET series triac dimmable led driver20 40 60 80 96Watt is one constant voltage solution, single channel, accept AC input voltage range from 100V to 120V, and 12 volt 24 volt output voltage with junction box. The switching led power supply is a constant voltage 12V 24V power supply, which is compatible with a single color or RGB light strip, string light, wireless router, ADSL Cat, HUB, switch, security camera, speaker, receiver and audio/video power supply. The class 2 led power transformer use low profile metal iron case, featuring Class 2 Class P design and safety protections for indoor use, the phase dim led driver provide 5 years warranty and outstanding led performance.
10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
Features:
* 100-120Vac 60Hz & 200-240Vac 50Hz Input
* Triac/Phase-cut Dimmable And Non-dimmable Optional
* 12V/ 24V Output
* Single Channel & Constant Voltage mode
* Enclosure With Junction Box
* ETL cETL Class2 CE Cert
* Enclosure: LISTED Enclosure with input and output wire
* For Forward & Reverse Phase, MLV, ELV
* High Power Factor, PF≥0.95
* Full Dimming Range:0-100%
* Flicker-Free
* Continuous & Smooth & Stable
* Protections: OCP, OVP, SCP, OTP
*For Dry Indoor Location
* 3 Years Warranty

Note:Any custom label/package/case is acceptable, provide OEM and ODM service
Specification:
Model No.
Output Power
Output Voltage
Output Current
Efficiency
Dimension
KSE-24W
20W
12V/24V
1.7A/0.84A
≥88%
(7.9*3.34*1.45)inch
200*85*37MM
KSE-40W
40W
12V/24V
3.34A/1.67A
≥88%
KSE-60W
60W
12V/24V
5A/2.5A
≥88%
KSE-80W
80W
24V
3.33A
≥88%
KSE-96W
96W
24V
4.0A
≥88%
10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
Product packaging
1. Each one put in one small inner brown box, then 40 pcs put in one standard carton.
2. Sample is available.
3. Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
Package
Piece/Carton(pcs)
Piece Weight(KG)
OEM package
40
0.52
Dimension/Brown Box(mm)
Dimension/Carton(mm)
Gross Weight/Carton(KG)
215*95*40
440*410*205
22
Applications
10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
NOW,GET MORE INFORMATIONS OF US !
Company Profile
10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
Working Room
10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
Specification:
10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
Nearly ¥3 Million Is Spent On Certification, Just To Make Customers Trust Our Quality
Exhibition
10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
Product packaging
1.Sample is available.
2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.
Package
Piece/Carton(pcs)
Piece Weight(KG)
OEM package
50
0.26
Dimension/Brown Box(mm)
Dimension/Carton(mm)
Gross Weight/Carton(KG)
155*85*35
455*370*175
14
10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
FAQ
10W Class 2 LED Driver Power Supply For UL Certified Junction Box LED Flood Light
